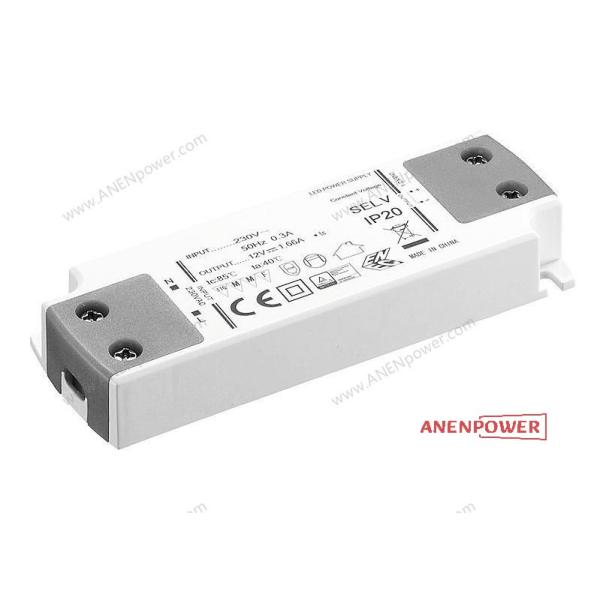

20W UKCA Certified Super Thin LED Power Supply – 12V/1.66A or 24V Output for LED Lighting

Name: 20W UKCA Certified Super Thin LED Power Supply 12V166A or 24V Output for LED Lighting
Brand: ANENpower
Price: 1 USD

Brand Name : ANENpower

Model Number : APL020S

Certification : UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA

Place of Origin : Shenzhen

MOQ : 500pcs

Price : Please contact our Sales

Payment Terms : 50% deposit, 50% before dispatch

Supply Ability : 500,000.00pcs/month

Delivery Time : 18~25 working days after receiving the deposit

Packaging Details : PE bag / White box / Custom made

Power : 20W max.

Input : 90-265V AC

Output Voltage : 12V/ 24V/ 36V /48V

Output Current : 1.66A/ 830mA/ 550mA/ 416mA

Dimension(LxWxH) : 128x46x17mm

Voltage Tolerance : ±5%

Riple(P-P) : ＜1%

Efficiency : ≥89%

Applicant : Cabinet lights, LED strips, LED indoor lighting, LED decorative lighting, LED building lighting

Contact Now

20W UKCA Certified Super Thin LED Power Supply – 12V/1.66A or 24V Output for LED Lighting

Compact, compliant, and capable—the 20W super thin LED driver offers dual-voltage flexibility with 12V at 1.66A or 24V constant-voltage output, perfect for LED strips, under-cabinet lights, and accent lighting. Fully UKCA certified, it meets UK safety and regulatory standards for reliable indoor use. Its ultra-slim design fits seamlessly into confined spaces, while efficient, stable performance ensures flicker-free illumination. Ideal for residential and light commercial installations where space, safety, and simplicity matter.

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP20 protection rating

MODEL DETAIL SPEC.		APL020S-1201660	APL020S-2400830	APL020S-3600550	APL020S-4800416
INPUT	Input Voltage:	100-240VAC/ 200-240VAC
	Input Frequency:	50-60Hz
	Inrush Current:	65 Amps max. at 230VAC/50Hz,full load
	AC Current:	0.11A/230VAC
	Leakage Current:	＜0.25mA/240VAC
	Efficiency:	88%	88%	88%	88%
OUTPUT	DC Voltage:	12V	24V	36V	48V
	Rated Current:	1.66A	830mA	550mA	416mA
	Rated Power:	20W	20W	20W	20W
	Voltage Tolerance:	±5.0%	±5.0%	±5.0%	±5.0%
	Ripple and Noise:	120mVp-p	240mVp-p	360mVp-p	480mVp-p
	Line Regulation:	±3%
	Load Regulation:	±5%
	Setup, Rise, Hold Up time:	1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTAL	Operating Temperature:	-20 ~ +50 (Refer to "Derating Curve")
	Storage Temp:	-40℃ ~ 85℃
	Storage Humidity:	20 ~ 95% RH
	Working Humidity:	20 ~ 95% RH non-condensing
PROTECTION	Over Load:	Above 105%-130% rated output power
		Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage:	12V:13.8 ~ 16.2V 24V:27.6 ~ 32.4V 36V:41.4~48.6V 48V:55.2~64.8V
		Protection type: Shut down o/p voltage, re-power on to recover
	Over Temperature:	Shut down o/p voltage, re-power on to recover
SAFETY & EMC	Safety Regulations:	EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
	Withstand Voltage:	I/P-O/P:3750KVAC
	Harmonic	EN61000-3-2 Class C EN61000-3-3
	EMI:	Compliance to EN55015
	EMS:	compliance to 61547:2009
OTHER	MTBF:	200,000 Hours Minimum at Full Load at 25℃ Ambient
	Size:	1284617mm
	Weight:	70g / pcs
	Packaging:	100PCS/CTN,37.528.524cm

20W UKCA Certified Super Thin LED Power Supply – 12V/1.66A or 24V Output for LED Lighting

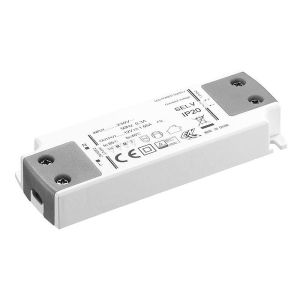

20W UKCA Certified Super Thin LED Power Supply – 12V/1.66A or 24V Output for LED Lighting Images
