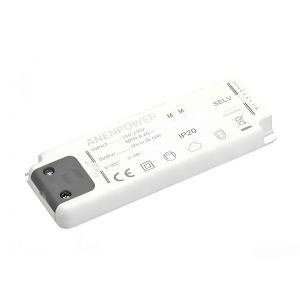

12W Max 12/24V IP20 Super Thin LED Power Supply – Compact Driver for Home & Commercial Cabinet Light Fixtures

Name: 12W Max 1224V IP20 Super Thin LED Power Supply Compact Driver for Home amp Commercial Cabinet Light Fixtures
Brand: ANENpower
Price: 1 USD

Brand Name : ANENpower

Model Number : APL012C

Certification : UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA

Place of Origin : Shenzhen

MOQ : 500pcs

Price : Please contact our Sales

Payment Terms : 50% deposit, 50% before dispatch

Supply Ability : 500,000.00pcs/month

Delivery Time : 18~25 working days after receiving the deposit

Packaging Details : PE bag / White box / Custom made

Power : 12W max.

Input : 220-240VAC

Output Voltage : 12V/ 24V

Dimension(LxWxH) : 128*46*12.5mm

Voltage Tolerance : ±5%

Riple(P-P) : ＜1%

Efficiency : ≥85%

Applicant : Cabinet lights, LED strips, LED indoor lighting, LED decorative lighting, LED building lighting

Contact Now

12W Max 12/24V IP20 Super Thin LED Power Supply – Compact Driver for Home & Commercial Cabinet Light Fixtures

Delivering up to 12W of stable power, this ultra-slim driver supports both 12V and 24V LED lighting systems—ideal for a wide range of low-voltage fixtures. Its minimal profile fits effortlessly into tight spaces under cabinets, inside display cases, or within shelving units. With IP20 protection, it’s optimized for safe, reliable indoor use in both residential and commercial settings. Whether for kitchen task lighting, retail showcases, or ambient home accents, this compact power supply combines performance, efficiency, and discreet design.

- Universal Input: 220-240V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions

MODEL DETAIL SPEC.		APL012C-1201000	APL012C-2400500
INPUT	Input Voltage:	220-240VAC
	Range of Input Voltage:	198-264VAC
	Input Frequency:	50/60Hz
	Input Current:	0.1AMAX@Full Load
	Inrush Current:	< 65 Amps at 230VAC/50Hz@full load
	Leakage Current:	< 0.25mA/240VAC
	THD (Full load):	< 20%
	Unload Power Consumption:	< 0.5W
	Efficiency:	85%
	Power Factor:	≥0.7@Full Load 220-240VAC
OUTPUT	DC Voltage:	12V	24V
	Rated Current(Max):	1.0A	0.5A
	Rated Power(Max):	12W	12W
	Voltage Tolerance:	±5%
	Ripple and Noise:	400mVp-p	400mVp-p
	Line Regulation:	±3%
	Load Regulation:	±5%
	Setup, Rise, Hold Up Time:	1s, 10ms/60ms 230VAC @ full load
ENVIRONMENTAL	Operating Temperature Ta:	-20℃ ~ +45℃
	Storage Temp:	-40℃ ~ +85℃
	Maximum Case Temperature Tc:	+85℃
	Humidity:	20 ~ 95% RH
	Lifetime:	>30000hours@ta 40℃
PROTECTION	Over Load:	Yes , Protection type: Auto Restore
		Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage:	Yes , Protection type: Auto Restore
		Protection type: Shut down o/p voltage, re-power on to recover
	Short Circuit:	Yes , Protection type: Auto Restore
SAFETY & EMC	Safety Regulations:	EN61347-2-13:2014+A1:2017,EN61347-1:2015+A1:2021;EN62493:2015
	Withstand Voltage:	I/P-O/P:3750VAC
	Harmonic:	EN61000-3-2 Class C EN61000-3-3
	EMI:	Compliance to EN55015
	EMS:	Compliance to EN61547:2009
OTHER	MTBF:	200,000 Hours Minimum at Full Load at 25℃ Ambient
	Case Material and Size:	Plastic
	IP Grade:	IP20
	Size:	1284612.5mm
	Weight:	70g / pcs
	Packaging:	200PCS/CTN
